SCIM Configuration

SCIM provisioning allows users to be securely created/updated within the Foundation cloud application. To ensure that the SCIM provisioning is set up for Foundation some steps are required within your organisations Entra ID.

Select Enterprise Application

Within your companies Entra portal log in with a user that has the tenant administrator role.

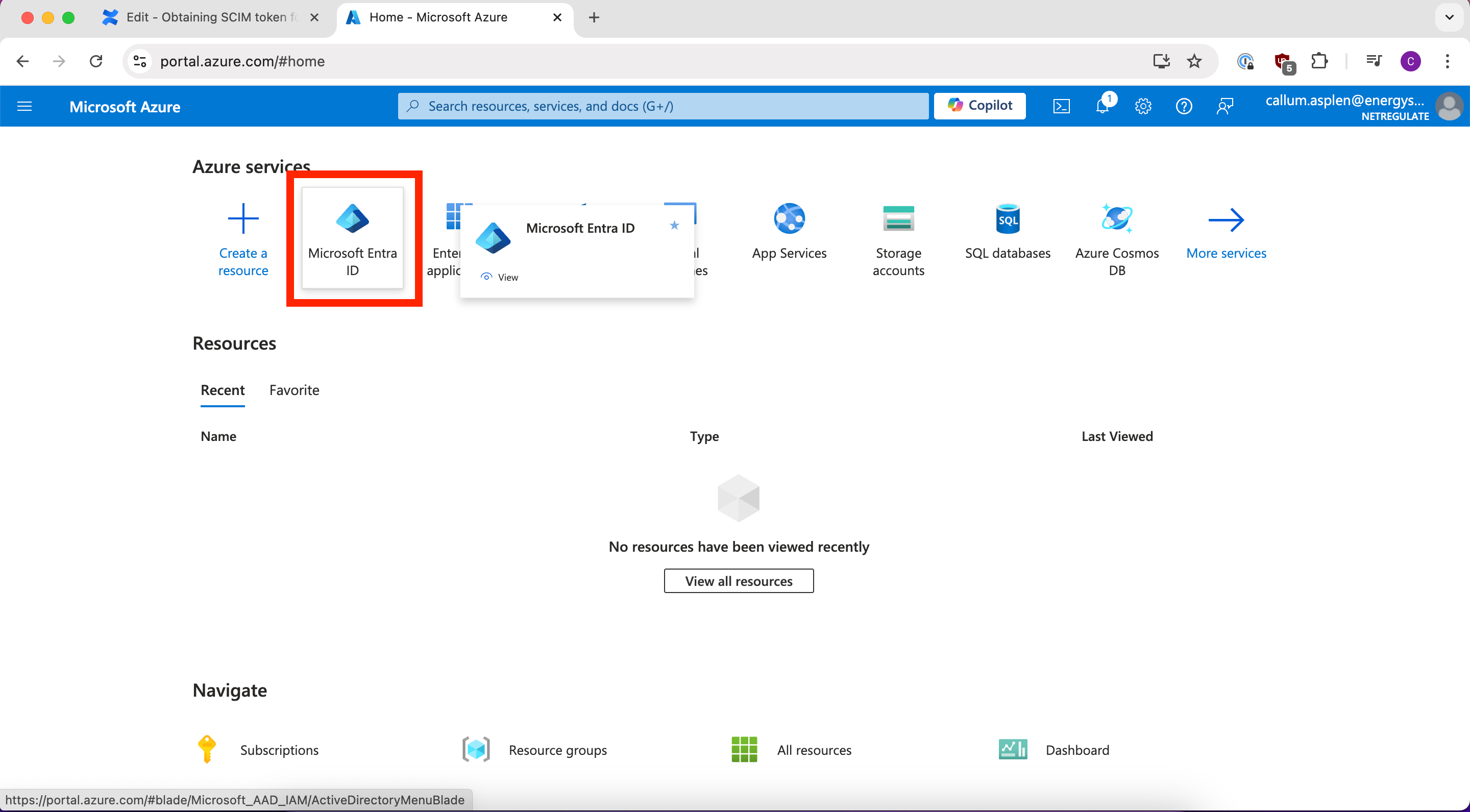

Once logged in select Microsoft Entra ID.

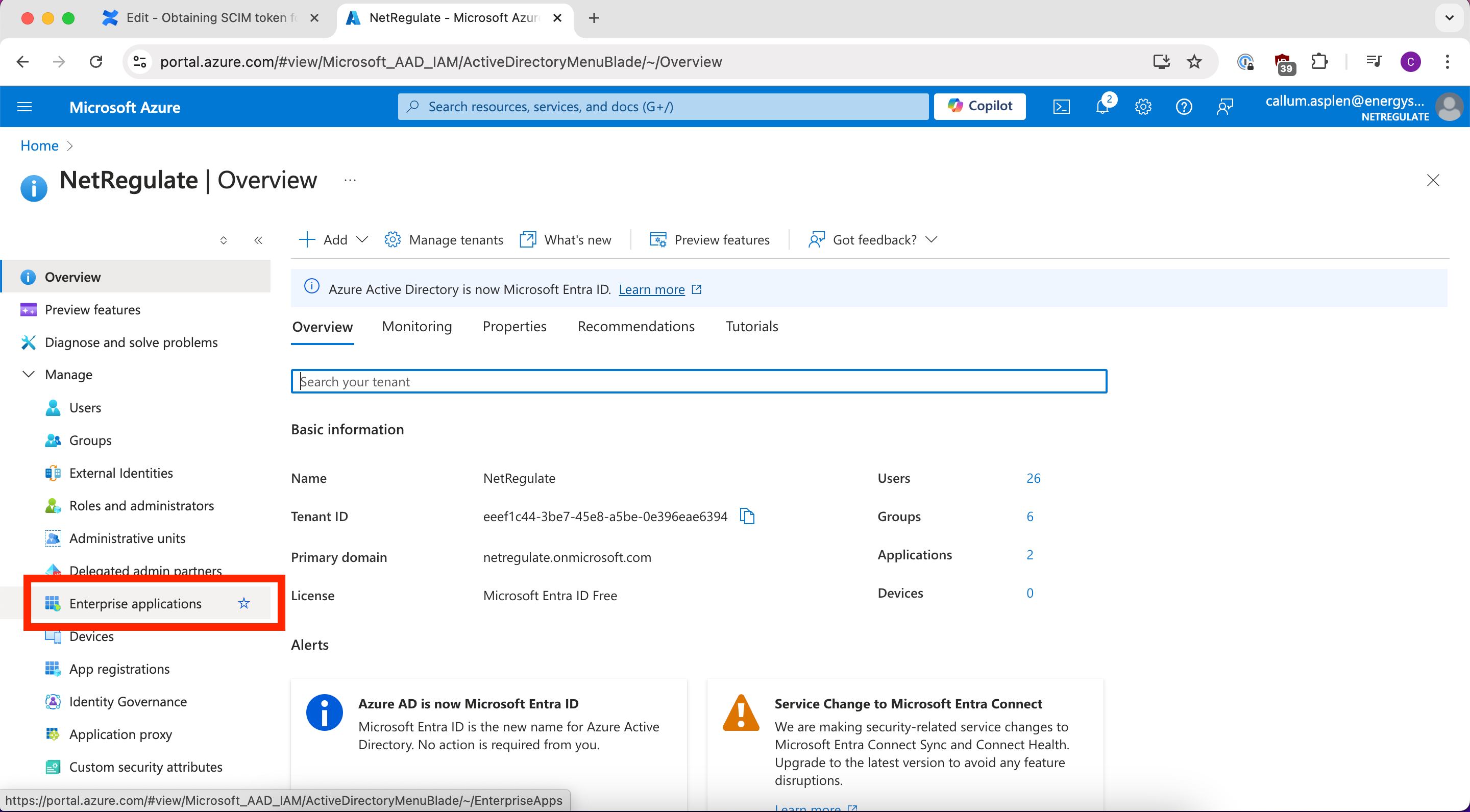

Within the Manage folder select Enterprise applications

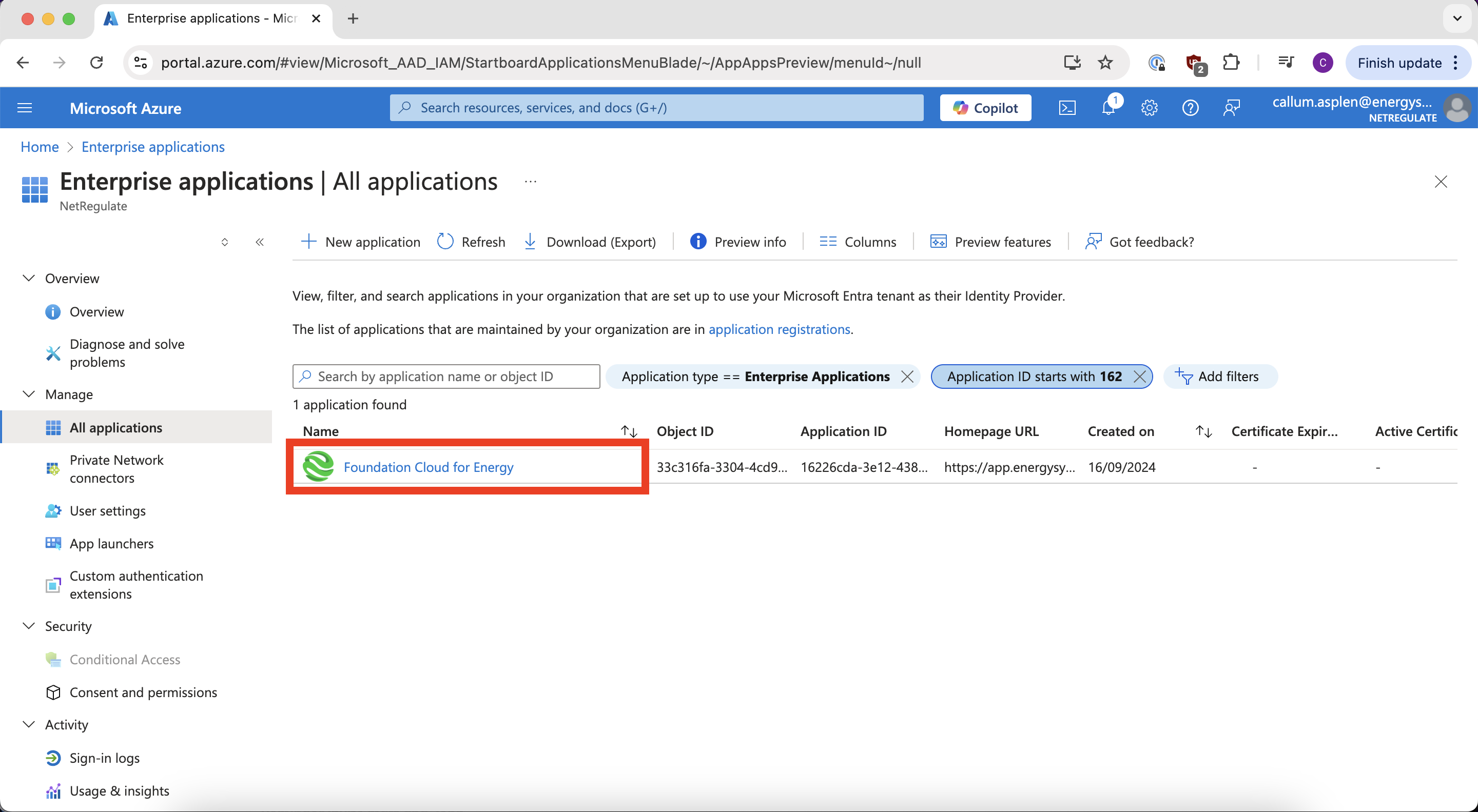

Search for and select the Foundation Cloud for Energy application. If the application is not listed follow the steps to create an Enterprise Application.

Configure SCIM Provisioning for the Enterprise Application

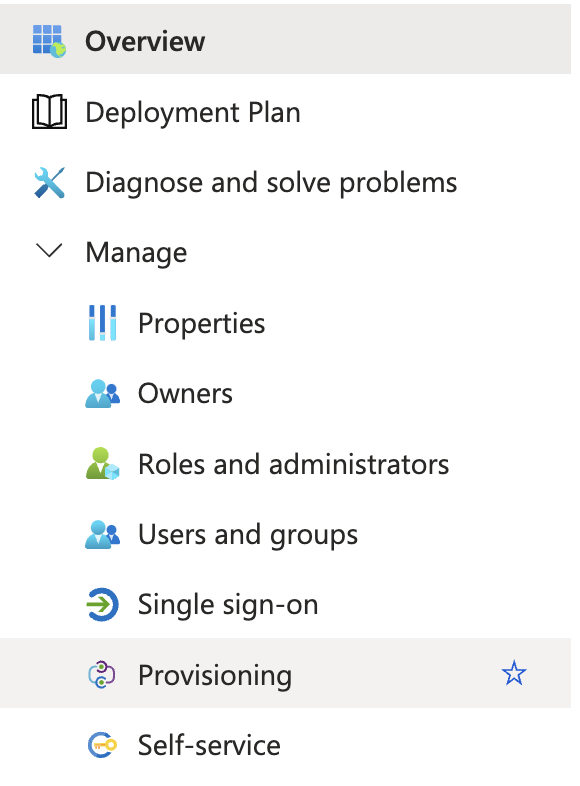

From the side menu expand Manage and select Provisioning

On the displayed screen press the Get Started button

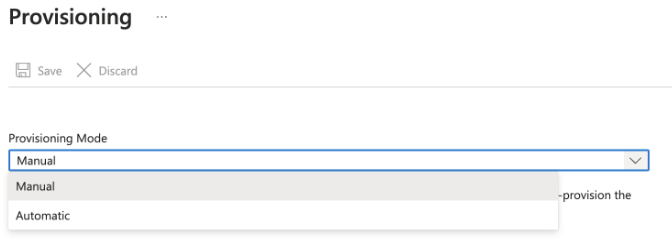

On the new screen select the Provisioning mode of Automatic

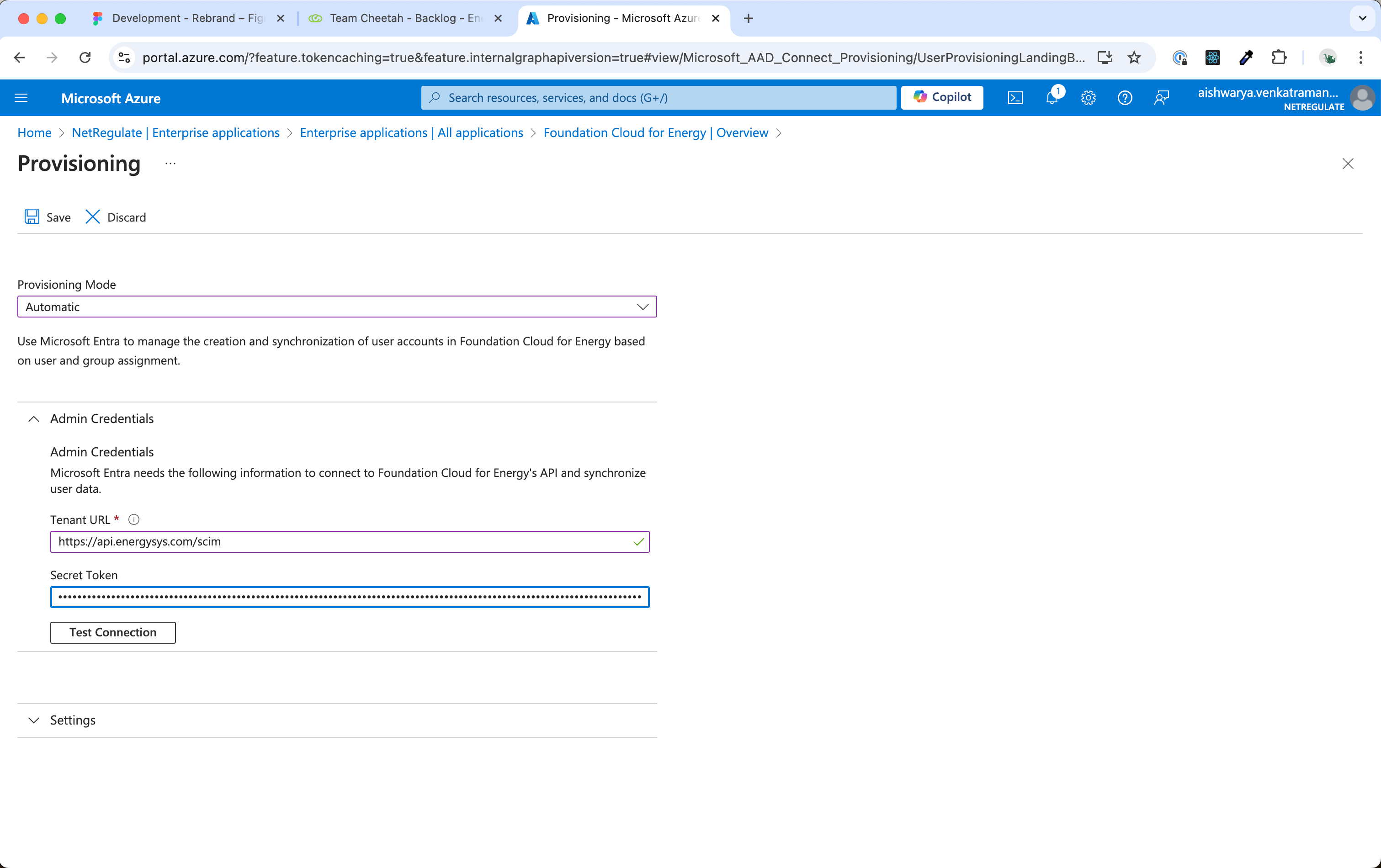

With Automatic selected you will be prompted to enter Admin Credentials

The requested Tenant URL and Secret Token are available from the Foundation Tenant App. If these have not yet been setup or a new set is required please follow the guide for the Generation and Management of Tokens.

The SCIM Provision Connection can be tested with the Test Connection button. If the test is successful then the Provisioning settings should be saved. If testing is unsuccessful, please verify that the SCIM attribute mappings below are correct and that the correct Tenant URL has been used. If the test is still unsuccessful, please contact support.

SCIM Attribute Mapping

Ensure correct mappings

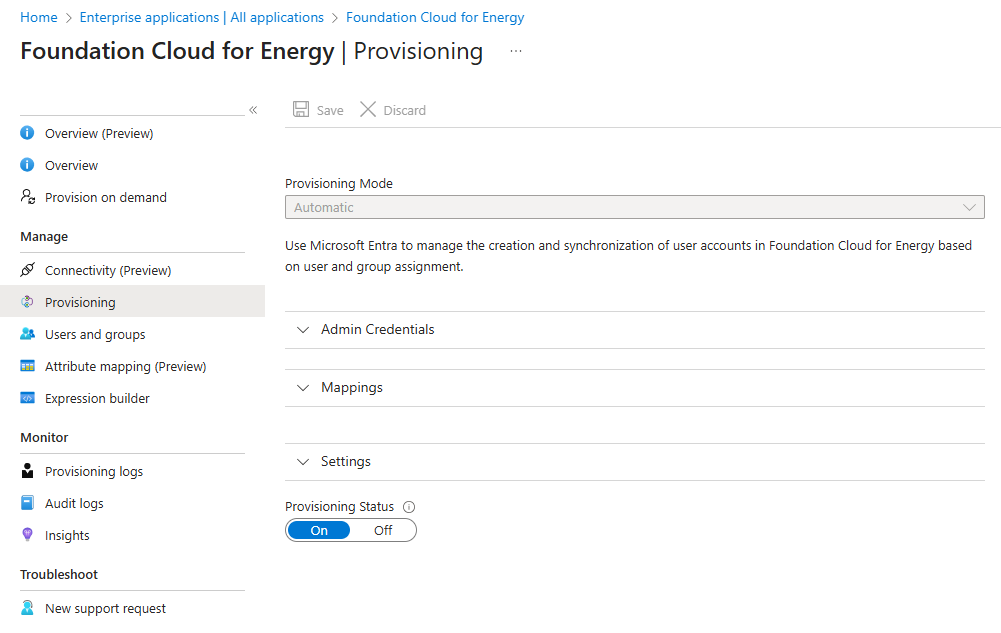

Select Manage -> Provisioning.

Select Mappings and then Provision Microsoft Entra ID Groups and ensure the mappings are as follows:

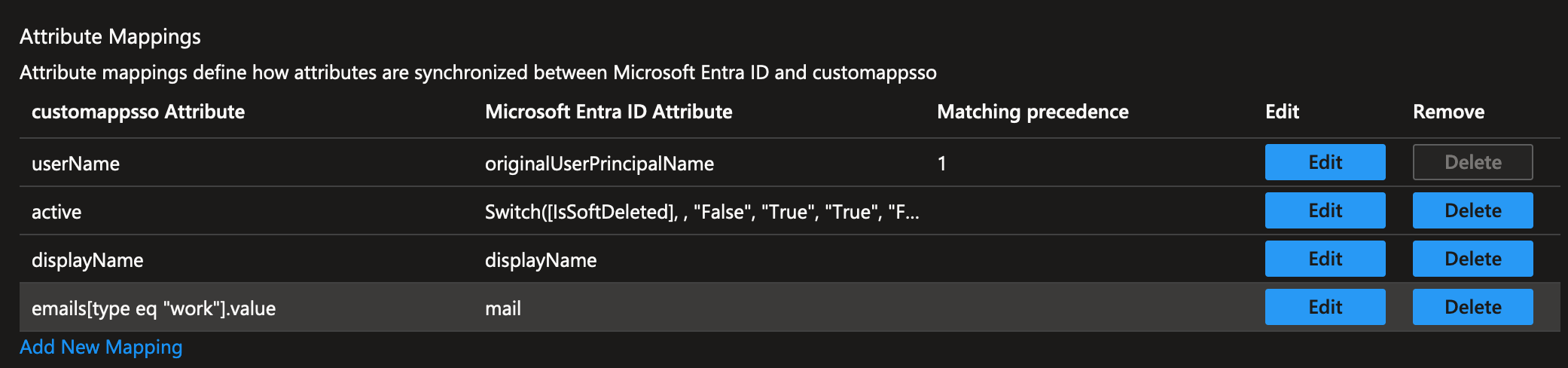

Select Provision Microsoft Entra ID Users and ensure the mappings are as follows:
